BlueZone Security Server Overview

The BlueZone Security Server is a Windows NT, Windows 2000, Windows 2003 based server software package designed primarily to provide Secure Sockets Layer (SSL) encryption for the BlueZone Terminal Emulation family of products, as well as other SSL enabled products. SSL is the standard for secure Internet communications and provides a cost effective solution ensuring data integrity, confidentiality, and authentication.

The Security Server is required only if Secure Sockets Layer (SSL) encryption is desired and SSL is not available on the host telnet or FTP server. The Security Server may be installed on the same server as the BlueZone Web-to-Host web server and the BlueZone License Manager.

NOTE The Security Server requires a license key in order to operate. If you are evaluating BlueZone emulation clients and would also like to evaluate the Security Server, you can install and run the Security Server without a license key. When installed without a license key, the Security Server will automatically operate in the “Evaluation Mode” by limiting the number of concurrent connections to the Security Server to three. All other functions of the Security Server are available in the "Evaluation Mode".

How BlueZone Security Server Works

The Security Server is an SSL redirector or proxy server providing a means to connect SSL enabled BlueZone emulation client products to systems which do not natively support SSL. The SSL enabled clients are configured to connect to the Security Server. Once connected, the Security Server establishes another connection to the host computer using a clear text connection. All data transmitted between the client and the Security Server is encrypted, while all data transmitted between the Security Server and the host computer is clear text.

The Security Server provides configuration parameters to define the path through the server hardware (Bindings) and between TCP/IP sockets (Connections). The Security Server is configured to listen for SSL connection requests from clients on one socket and create a clear text connection to the host computer on another socket. Once the connection is established between the client and the Security Server, the Security Server establishes a separate connection to the configured host then transfers the data between the two connections. Encryption and decryption of the data passing between the client and the Security Server occurs transparently to the user. The only indication the user has that the session is encrypted is the lock icon on the BlueZone emulation client status line.

The BlueZone Security Server has two modes:

An SSL to clear-text redirector or proxy server providing encryption services for SSL enabled BlueZone telnet , FTP sessions, and HTTPS. When an encrypted session is established to the Security Server, the Security Server in turn establishes a clear text connection to the host.
A clear-text to SSL redirector or proxy server providing encryption services for non-SSL capable TCP/IP clients allowing them to connect to SSL capable servers. When a TCP/IP connection is established between a client application and the Security Server, the Security Server in turn establishes a SSL session to another Security Server or any SSL capable server.

TCP/IP Sockets

A TCP/IP socket is the combination of an IP address and a TCP port number. TCP/IP supports 65,535 different port numbers, therefore an equal number of sockets per IP address on a server. Port numbers from 0-1024 are reserved for specific protocols and should not be used when configuring the secure side of the Security Server.

When a TCP/IP connection is established, the application opens a socket on its computer and connects to a socket on the other computer. A secure socket is a TCP/IP socket connection which has been established using the Secure Sockets Layer protocol.

Security Server and Sockets

The Security Server provides configuration parameters to define the path through the server hardware (Bindings) and between TCP/IP sockets (Connections). The Security Server is configured to listen for SSL connection requests from the BlueZone emulation client on one socket, and create a clear text connection to the host computer on another socket. Once the connection is established between the BlueZone emulation client and the Security Server, the Security Server establishes a separate connection to the configured host then transfers the data between the two connections. Encryption and decryption of the data passing between the BlueZone emulation client and the Security Server occurs transparently to the user. The indication to the user has that the session is encrypted is the lock icon on the BlueZone emulation client StatusBar as shown here:

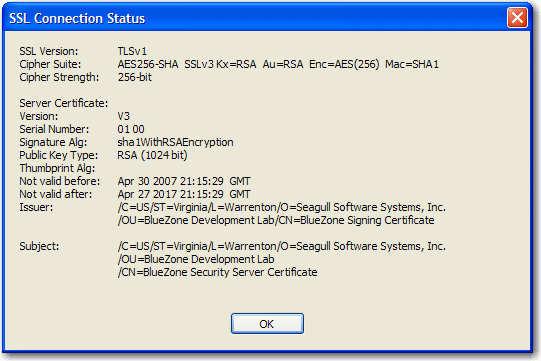

A single click on the lock icon will cause the SSL Connection Status dialog to be displayed as shown here:

This dialog contains the details of the SSL/TLS connection.
