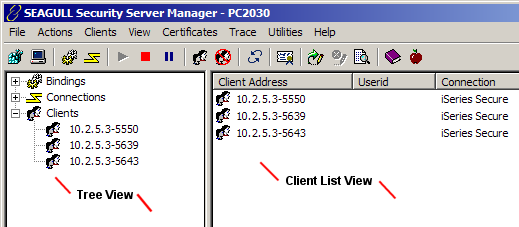

Double-click the Clients icon in the Tree View to display all currently connected clients in the Tree View Window as shown here.
Clients are individual BlueZone Telnet, FTP or HTTP users actively connected to the Security Server. The Clients Tree View, shows all currently connected clients by IP address and their outgoing TCP port.
Clients can also be viewed in the Client List View pane.

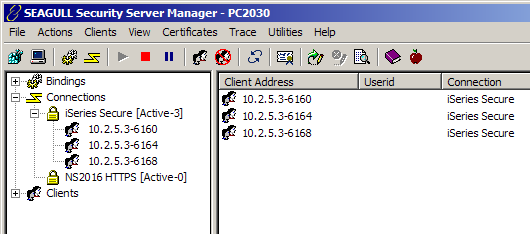

Clients associated with each Connection may also be viewed by clicking the + on a Connection as shown below:

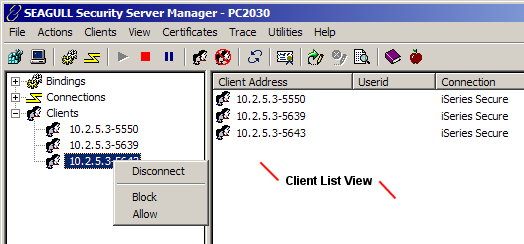

Right clicking on an active client displays a menu allowing three actions to be performed on that client connection, as shown in the following example:
NOTE
You can
right click on the Client Address
in either the Tree View (as shown below) or the Client
List View.
Disconnect - immediately terminates the client connection.
Block - displays the Block Clients dialog and automatically enters the selected client's IP address in the Address: edit box.
Allow - displays the Allow Clients dialog and automatically enters the selected client's IP address in the Address: edit box. This is useful when creating the allowed clients list prior to creating a blocked IP address range.
