A Binding specifies addresses to be used for incoming client connections and the outgoing host connection. If the addresses are different, the Security Server acts like a bridge or router spanning different networks. Bindings may span dissimilar networks, such as Ethernet to Token-ring, provided TCP/IP is bound to both NICs in the Windows operating system Network Settings. A Binding must be defined before a Connection may be defined. Several different Connections (or all of them) may use the same Binding.

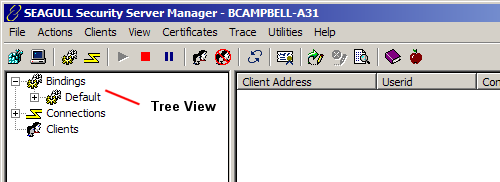

Supported functions in the tree view are:
Click on the + or double-click Bindings to display a list of all configured Bindings in the system.
Right-click on Bindings to Create a new binding.
Right-click on a configured binding to Delete or display the Properties.
Double-click on a configured binding to display the Properties.
Click the + on a configured binding to display all associated Connections.
SEE Configuring
the Bindings for more information.
