D3 installation options

After the D3 package is loaded, a D3 installation script executes to generate a configuration file. If the configuration file /usr/lib/pick/pick0 already exists, the D3 Installation menu displays. For a new installation, the D3 Installation menu displays, using the default configuration file.

Note: If the installation program modifies the pick0 file, it will put a backup copy of that file in the /tmp directory under the name sav.pick-.x.

See these topics for menu and configuration specifics:

Getting started

Installation worksheet

D3 menus

Display/Modify D3 Configuration menu

Complete these instructions to proceed with the installation process from the D3 Installation menu.

1. Select the Display/Modify D3 configuration option.

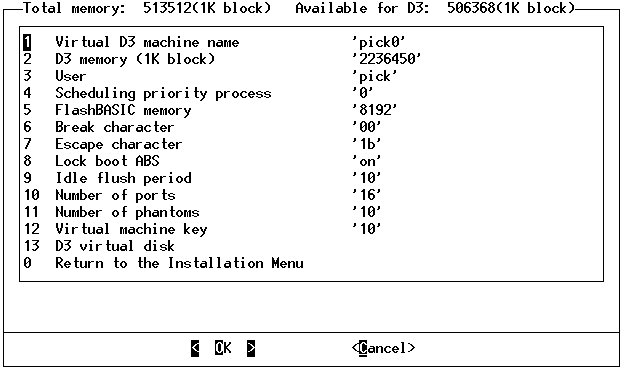

   The menu below displays:


2. Review each menu option and the corresponding default configuration value displayed using the values entered in the worksheet located in the Installation worksheet.

   To accept the default configuration, enter 0 to return to the D3 Installation menu.

   To change the default configuration, select the menu item to change and enter the new value.

   Note:

   • Consult the Display/Modify D3 Configuration menu for menu option descriptions.

   • Selecting the D3 virtual disk option displays the D3 virtual disk menu. See D3 Virtual Disk menu for a discussion of this menu and its options.

3. Enter 0 after all desired configuration changes are made to return to the D3 Installation menu.
4. Proceed to the next section, Installing D3 with the chosen settings.
