Gradient Start (GradientStart)

The GradientStart property defines the edge of the area frame or entity from which to start shading the gradient background color. The shading ends at the opposite side.

GradientStart=Top | Bottom | Right | Left

Example: "GradientStart=bottom"

Usage

Dynamic?

Yes for entities, No for area frames

Supported in Grid?

No

Dependencies:

Applicable only if BackcolorFill is gradient.

Setting in ProcScript

For the entities, this property can be set in ProcScript using the $entityProperties or $curEntProperties commands.

variables
  string vProperties
endvariables

putitem/id vProperties,"Borderradius","20px"
putitem/id vProperties,"backcolor","darkseagreen"
putitem/id vProperties,"backcolorfill","gradient"
putitem/id vProperties,"gradientstart","bottom"
putitem/id vProperties,"gradientstartcolor","lightblue"

$entityproperties(ORDER.SALES)=vProperties

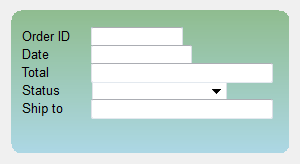

Result

Entity with graduated color starting at bottom

Setting in Initialization File

For area frames, you can specify this property on the basis of frame names in the [areaframes] section of the .ini. It is not possible to set this property in the Uniface IDE. For more information, see [areaframes].

[areaframes]
frame_gradient=uframe(backcolor=blue;backcolorfill=gradient;gradientstart=bottom)
