Script Editor

The Script Editor enables you to write ProcScript and JavaScript that controls the behavior of the component.

The Script Editor contains:

Structure pane—shows the object structure. Use this pane to navigate to objects whose code you want to edit.
Code Editor—enables you to edit ProcScript modules of the selected object.

It is possible to open a second Script Editor so that you can view and edit the code of two modules or two objects at the same time.

Tip: By default, the Code Editor shows line numbers, but this can be disabled, which can improve performance when a code container has a large amount of code. See Configure Indentation and Line Numbering in the Script Editor.

Shortcut Menu

Command	Action
Insert from Resource Browser	Inserts the selected snippet into the Script Editor (Main editor or Alternative editor) at the current cursor position. Note: The Alternative editor option is available only if the Script Editor has both editing windows open.
Copy	Copies the selected code to the Clipboard.
Paste	Pastes selected snippet or text from the Clipboard

Command

Action

Insert from Resource Browser

Inserts the selected snippet into the Script Editor (Main editor or Alternative editor) at the current cursor position.

Note: The Alternative editor option is available only if the Script Editor has both editing windows open.

Copy

Copies the selected code to the Clipboard.

Paste

Pastes selected snippet or text from the Clipboard

How do I ...

Editing

You can use Ctrl+Z and Ctrl+Y to undo and redo edits. Each editor has its own Undo/Redo stack.

You can get help with the parameters of ProcScript functions as you enter code. this is automatically displayed when you type the opening parenthesis.

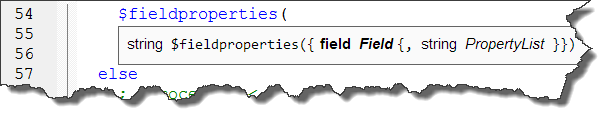

Parameter help

Note: This type of help is not yet available for ProcScript statements.
