Single server setup
This setup has one Cluster Service and one Server (one set of emulation services) configured and can be used in situations
where clustering (multiple servers) is not required to provide higher availability. The Cluster Service transparently directs
all traffic to the single available Server.
In the scenario below, all the components are installed on the same machine.

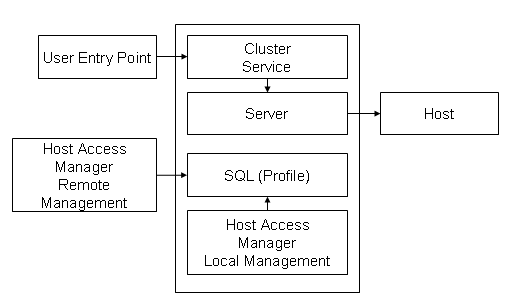

Figure 1: Single server setup overview
Configuring a single server installation
Follow the steps below to configure a single server installation.
| 1. | During the installation, provide the IP address of the single server. If you missed this point during the installation, you can either do the installation again or edit the HTML pages.
|
| 2. | Add one cluster service entry in Host Access Manager. |
| 3. | Add one Server entry in Host Access Manager. Both the Cluster Service and the Server entries must have the same IP address in this case. |
