Single server setup
This setup has one cluster service and one server (one set of emulation services) configured and can be used in situations where clustering (multiple servers) is not required to provide higher availability. The cluster service transparently directs all traffic to the single available server.
In the scenario below, all of the components are installed on the same machine.

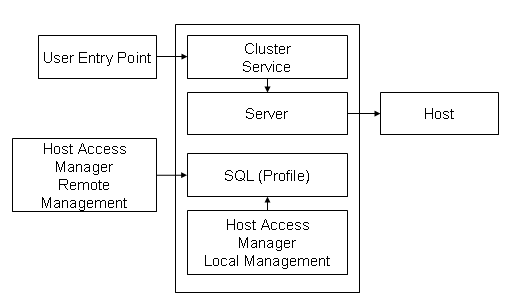

Figure 1: Single server setup overview
