How To Guide - Advanced

BlueZone Web-to-Host

How to Configure Embedded Client Mode

Embedded Client Mode: Click here to learn more about this feature

By default, BlueZone Web-to-Host is not configured for Embedded mode.  In the normal default Web-to-Host mode, BlueZone sessions are launched separate from the browser.

BlueZone sessions can be "embedded" into the browser window, in either Positioned mode where you can choose the exact height and width of the BlueZone session in pixels, or Full Screen mode where the BlueZone session takes up the full size of the browser window.

NOTE This feature only works with Internet Explorer.

Embed Mode Type:

When to Use This Feature

Use this feature when you want to make the BlueZone emulator client part of the web page, as opposed to floating on top of the web page.

Configuration Method: Web-to-Host Wizard

Feature Scope: Launch Folder Level Feature

Procedure

  1. Launch the Web-to-Host Wizard.

  2. Navigate to the desired Site or create a new one.

  3. Select an existing Launch Folder or create a new one.

  4. Since you can only embed one BlueZone session in a web page, make sure that the Launch Folder you selected has only one associated Session.

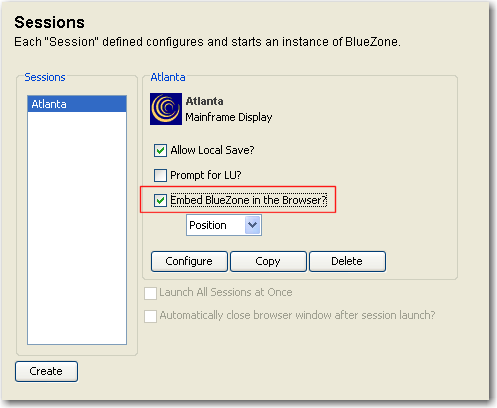

  5. Place a check in the "Embed BlueZone in the Browser?" checkbox as shown:

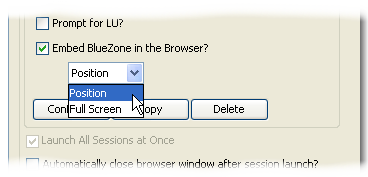

  1. Now select the Embed Mode type from the listbox as shown here:

  1. Click the Next button.  The Advanced Settings page will be displayed.

  2. Click the Embedded button.  The Advanced Settings : Embedded Mode page will be displayed.

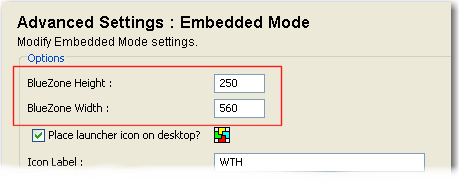

  3. If you chose the Position option, you can change the height and width of the BlueZone emulation session as shown:

  1. Make any other desired changes and click the OK button.

From this point on, when you launch a Session from this Launch Folder, the Session will be "embedded" in the browser, based on the Embedded Mode settings you chose.
